Arctic Atmosphere in a Warming Climate: ERA5 Sea-Ice Profiles

The Arctic is warming two to four times faster than the global mean — a phenomenon known as Arctic amplification. Understanding how the vertical structure of temperature and humidity responds to declining sea ice is central to the (AC)³ project (Arctic Amplification: Climate Relevant Atmospheric and Surface Processes, and Feedback Mechanisms).

This notebook visualises decadal trends in atmospheric profiles binned by season and sea-ice cover fraction, derived from ERA5 reanalysis data. All data live in xarray Datasets, which makes the trend analysis — including the polyfit call — a single line of code.

Dataset — data/era5_sea_ice_to_libradtran.nc (pre-processed by era5_seasonal_sea_ice_profiles.ipynb):

Dimension	Description
season	DJF · MAM · JJA · SON
valid_time	Decade index (1979 – present)
sea_ice_cover	Fractional sea-ice concentration (0 → 1)
pressure_level	Atmospheric pressure in hPa

The variables t (temperature, K) and q (specific humidity, kg kg⁻¹) are ensemble means within each bin. A linear polyfit along valid_time converts the decadal time axis into a trend (K decade⁻¹ or g kg⁻¹ decade⁻¹).

# pip install cmcrameri

import xarray as xr
import numpy as np
import matplotlib.pyplot as plt
import matplotlib.ticker as mticker
import cmocean
import cmcrameri.cm as cmc

# ── Global style ────────────────────────────────────────────────────────────
plt.rcParams.update({
    "font.family": "sans-serif",
    "font.size": 13,
    "axes.titlesize": 14,
    "axes.labelsize": 13,
    "xtick.labelsize": 11,
    "ytick.labelsize": 11,
    "figure.dpi": 120,
    "axes.spines.top": False,
    "axes.spines.right": False,
})

ds_out = xr.open_dataset('data/era5_sea_ice_to_libradtran.nc', chunks='auto')

/home/josh/micromamba/envs/mamba_josh/lib/python3.13/site-packages/pyproj/network.py:59: UserWarning: pyproj unable to set PROJ database path.
  _set_context_ca_bundle_path(ca_bundle_path)

ds_out

<xarray.Dataset> Size: 100kB
Dimensions:         (season: 4, valid_time: 8, sea_ice_cover: 10,
                     pressure_level: 13)
Coordinates:
  * pressure_level  (pressure_level) int64 104B 50 100 150 200 ... 850 925 1000
  * season          (season) <U3 48B 'DJF' 'MAM' 'JJA' 'SON'
  * valid_time      (valid_time) datetime64[ns] 64B 1982-07-02T12:00:00 ... 2...
  * sea_ice_cover   (sea_ice_cover) float64 80B 0.05 0.15 0.25 ... 0.85 0.95
Data variables:
    t               (season, valid_time, sea_ice_cover, pressure_level) float64 33kB dask.array<chunksize=(4, 8, 10, 13), meta=np.ndarray>
    q               (season, valid_time, sea_ice_cover, pressure_level) float64 33kB dask.array<chunksize=(4, 8, 10, 13), meta=np.ndarray>
    theta           (season, valid_time, sea_ice_cover, pressure_level) float64 33kB dask.array<chunksize=(4, 8, 10, 13), meta=np.ndarray>

xarray.Dataset

• Dimensions:
  • season: 4
  • valid_time: 8
  • sea_ice_cover: 10
  • pressure_level: 13
• Coordinates: (4)
  • pressure_level
    (pressure_level)
    int64
    50 100 150 200 ... 700 850 925 1000

    units :

    hPa

    array([  50,  100,  150,  200,  250,  300,  400,  500,  600,  700,  850,  925,
           1000])

  • season
    (season)
    <U3
    'DJF' 'MAM' 'JJA' 'SON'

    array(['DJF', 'MAM', 'JJA', 'SON'], dtype='<U3')

  • valid_time
    (valid_time)
    datetime64[ns]
    1982-07-02T12:00:00 ... 2017-07-02

    array(['1982-07-02T12:00:00.000000000', '1987-07-03T00:00:00.000000000',
           '1992-07-02T00:00:00.000000000', '1997-07-02T00:00:00.000000000',
           '2002-07-02T12:00:00.000000000', '2007-07-03T00:00:00.000000000',
           '2012-07-02T00:00:00.000000000', '2017-07-02T00:00:00.000000000'],
          dtype='datetime64[ns]')

  • sea_ice_cover
    (sea_ice_cover)
    float64
    0.05 0.15 0.25 ... 0.75 0.85 0.95

    array([0.05, 0.15, 0.25, 0.35, 0.45, 0.55, 0.65, 0.75, 0.85, 0.95])

• Data variables: (3)
  • t
    (season, valid_time, sea_ice_cover, pressure_level)
    float64
    dask.array<chunksize=(4, 8, 10, 13), meta=np.ndarray>

    units :

    K

    Array Chunk Bytes 32.50 kiB 32.50 kiB Shape (4, 8, 10, 13) (4, 8, 10, 13) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

  • q
    (season, valid_time, sea_ice_cover, pressure_level)
    float64
    dask.array<chunksize=(4, 8, 10, 13), meta=np.ndarray>

    units :

    kg/kg

    Array Chunk Bytes 32.50 kiB 32.50 kiB Shape (4, 8, 10, 13) (4, 8, 10, 13) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

  • theta
    (season, valid_time, sea_ice_cover, pressure_level)
    float64
    dask.array<chunksize=(4, 8, 10, 13), meta=np.ndarray>

    Array Chunk Bytes 32.50 kiB 32.50 kiB Shape (4, 8, 10, 13) (4, 8, 10, 13) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

• Indexes: (4)
  • pressure_level
    PandasIndex

    PandasIndex(Index([50, 100, 150, 200, 250, 300, 400, 500, 600, 700, 850, 925, 1000], dtype='int64', name='pressure_level'))

  • season
    PandasIndex

    PandasIndex(Index(['DJF', 'MAM', 'JJA', 'SON'], dtype='object', name='season'))

  • valid_time
    PandasIndex

    PandasIndex(DatetimeIndex(['1982-07-02 12:00:00', '1987-07-03 00:00:00',
                   '1992-07-02 00:00:00', '1997-07-02 00:00:00',
                   '2002-07-02 12:00:00', '2007-07-03 00:00:00',
                   '2012-07-02 00:00:00', '2017-07-02 00:00:00'],
                  dtype='datetime64[ns]', name='valid_time', freq=None))

  • sea_ice_cover
    PandasIndex

    PandasIndex(Index([               0.05, 0.15000000000000002,                0.25,
                          0.35,                0.45,                0.55,
            0.6499999999999999,                0.75,  0.8500000000000001,
                          0.95],
          dtype='float64', name='sea_ice_cover'))

• Attributes: (0)

ds_out['theta'] = ds_out['t'] * (1000 / ds_out['pressure_level'])**0.286  # dry potential temperature (K)
ds_trend = ds_out - ds_out.mean(dim='valid_time')                          # anomaly relative to decadal mean

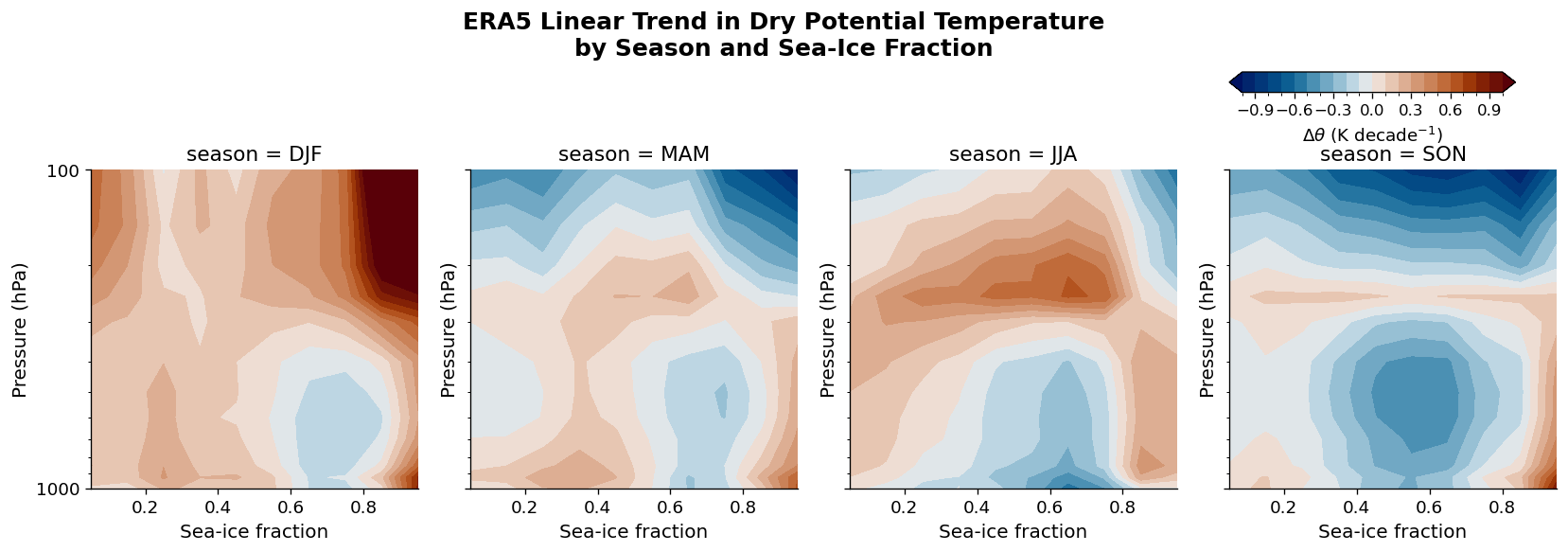

Potential Temperature Trends (K decade⁻¹)

Dry potential temperature \(\theta = T\,(p_0/p)^{0.286}\) removes the dry-adiabatic lapse rate, making vertical structure easier to compare across seasons and ice fractions.

A first-order polyfit along the decade axis gives the linear trend at each (pressure, sea-ice) grid point. Consistent warming in the lower troposphere over high ice-cover grid cells, particularly in winter (DJF), is a characteristic signature of Arctic amplification. The entire calculation — including the fit, unit conversion, and faceted plot — relies on a handful of xarray operations.

trend_theta = (
    ds_out.polyfit(dim='valid_time', deg=1)
    .isel(degree=0)
    .theta_polyfit_coefficients
    * (1e9 * 3600 * 24 * 365 * 10)   # convert ns⁻¹ → K decade⁻¹
)

levels = np.arange(-1.0, 1.05, 0.1)
fg = trend_theta.plot.contourf(
    y='pressure_level',
    ylim=(1000, 100),
    yscale='log',
    col='season',
    col_wrap=4,
    levels=levels,
    cmap=cmc.vik,          # perceptually uniform diverging (Crameri 2018)
    add_colorbar=False,
)

for ax in fg.axs.flat:
    ax.set_xlabel("Sea-ice fraction", fontsize=12)
    ax.set_ylabel("Pressure (hPa)", fontsize=12)
    ax.yaxis.set_major_formatter(mticker.ScalarFormatter())
    ax.yaxis.set_minor_formatter(mticker.NullFormatter())
    ax.tick_params(labelsize=11)

fg.fig.suptitle(
    "ERA5 Linear Trend in Dry Potential Temperature\nby Season and Sea-Ice Fraction",
    y=1.08, fontsize=15, fontweight="bold",
)
fg.fig.set_size_inches(14, 4.5)
plt.tight_layout()

# ── Colorbar: upper-right corner, above the panel row ──────────────────────
# Grab the mappable from the first filled-contour artist in the FacetGrid
mappable = fg.axs.flat[0].collections[0]
cbar_ax = fg.fig.add_axes([0.78, 0.92, 0.18, 0.04])   # [left, bottom, width, height]
cb = fg.fig.colorbar(mappable, cax=cbar_ax, orientation='horizontal')
cb.set_label(r"$\Delta\theta$ (K decade$^{-1}$)", fontsize=11)
cb.ax.tick_params(labelsize=10)

plt.show()

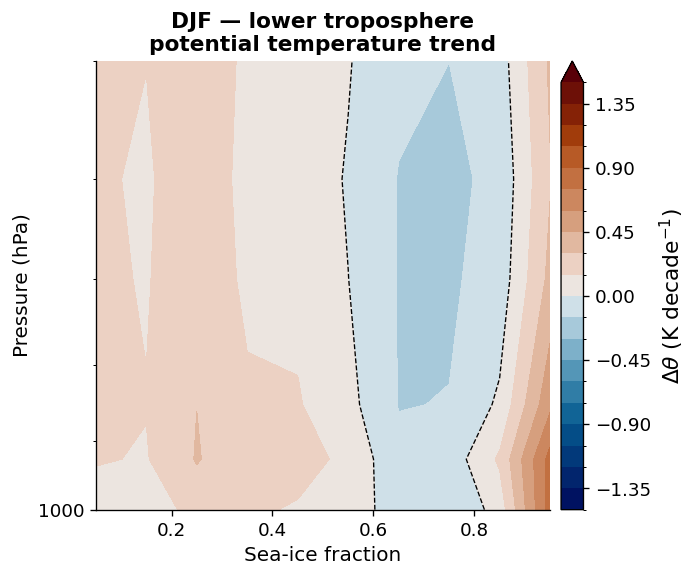

Winter Close-Up: DJF Lower Troposphere

Arctic amplification is strongest in autumn and winter, when sea-ice retreat exposes the dark ocean to long-wave emission and turbulent heat fluxes. The panel below zooms into the DJF lower troposphere (surface – 500 hPa) across the full sea-ice fraction range, resolving the near-surface inversion signal.

fig, ax = plt.subplots(figsize=(6, 5))

djf_trend = trend_theta.sel(season="DJF")

cf = djf_trend.plot.contourf(
    y="pressure_level",
    ylim=(1000, 500),
    yscale="log",
    levels=np.arange(-1.5, 1.55, 0.15),
    cmap=cmc.vik,
    ax=ax,
    add_colorbar=True,
    cbar_kwargs={"label": r"$\Delta\theta$ (K decade$^{-1}$)", "pad": 0.02},
)

# zero-trend contour for reference
djf_trend.plot.contour(
    y="pressure_level",
    ylim=(1000, 500),
    yscale="log",
    levels=[0],
    colors=["k"],
    linewidths=0.8,
    linestyles="--",
    ax=ax,
    add_colorbar=False,
)

ax.set_title("DJF — lower troposphere\npotential temperature trend", fontsize=13, fontweight="bold")
ax.set_xlabel("Sea-ice fraction", fontsize=12)
ax.set_ylabel("Pressure (hPa)", fontsize=12)
ax.yaxis.set_major_formatter(mticker.ScalarFormatter())
ax.yaxis.set_minor_formatter(mticker.NullFormatter())
ax.tick_params(labelsize=11)

plt.tight_layout()
plt.show()

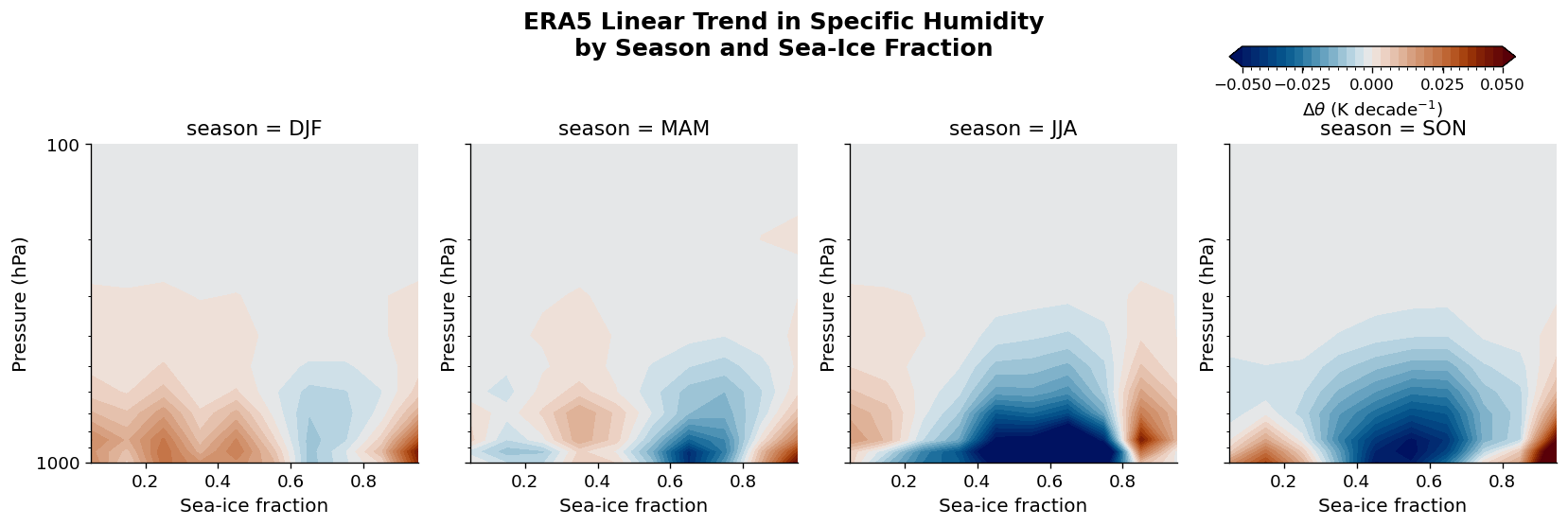

Specific Humidity Trends (g kg⁻¹ decade⁻¹)

A warmer Arctic atmosphere holds more water vapour (Clausius–Clapeyron relation). Moistening of the Arctic lower troposphere amplifies the greenhouse effect and feeds back into further warming — making the humidity trend a key diagnostic for (AC)³ simulations performed with pyRadtran.

trend_q = (
    ds_out.polyfit(dim="valid_time", deg=1)
    .isel(degree=0)
    .q_polyfit_coefficients
    * (1e9 * 3600 * 24 * 365 * 10)   # ns⁻¹ → decade⁻¹
    * 1000                             # kg kg⁻¹ → g kg⁻¹
)

# symmetric levels centred on zero — changes in sign are clearly visible
vmax = float(np.abs(trend_q).quantile(0.97))
levels_q = np.linspace(-vmax, vmax, 31)

fg = trend_q.plot.contourf(
    y="pressure_level",
    ylim=(1000, 100),
    yscale="log",
    col="season",
    col_wrap=4,
    levels=levels_q,
    cmap=cmc.vik,
    add_colorbar=False,
    cbar_kwargs={
        "label": r"$\Delta q$ (g kg$^{-1}$ decade$^{-1}$)",
        "shrink": 0.8,
        "pad": 0.02,
    },
)

for ax in fg.axs.flat:
    ax.set_xlabel("Sea-ice fraction", fontsize=12)
    ax.set_ylabel("Pressure (hPa)", fontsize=12)
    ax.yaxis.set_major_formatter(mticker.ScalarFormatter())
    ax.yaxis.set_minor_formatter(mticker.NullFormatter())
    ax.tick_params(labelsize=11)

fg.fig.suptitle(
    "ERA5 Linear Trend in Specific Humidity\nby Season and Sea-Ice Fraction",
    y=1.03, fontsize=15, fontweight="bold",
)
# ── Colorbar: upper-right corner, above the panel row ──────────────────────
# Grab the mappable from the first filled-contour artist in the FacetGrid
mappable = fg.axs.flat[0].collections[0]
cbar_ax = fg.fig.add_axes([0.78, 0.92, 0.18, 0.04])   # [left, bottom, width, height]
cb = fg.fig.colorbar(mappable, cax=cbar_ax, orientation='horizontal')
cb.set_label(r"$\Delta\theta$ (K decade$^{-1}$)", fontsize=11)
cb.ax.tick_params(labelsize=10)
cb.ax.set_xticks([-0.05, -0.025, 0.00, 0.025, 0.05])


fg.fig.set_size_inches(14, 4.5)
plt.tight_layout()
plt.show()

/tmp/ipykernel_15137/479977737.py:51: UserWarning: This figure includes Axes that are not compatible with tight_layout, so results might be incorrect.
  plt.tight_layout()

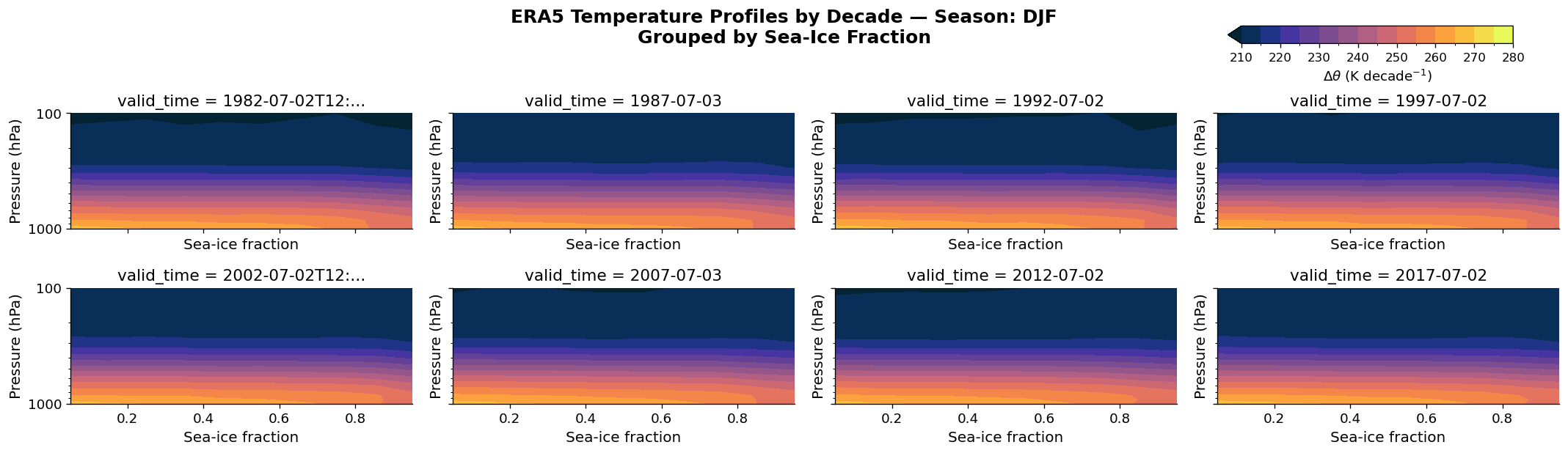

Absolute Temperature Profiles by Decade

While trends reveal how fast the Arctic is changing, the absolute temperature structure determines which radiative transfer regime applies in pyRadtran simulations. Each panel below shows a single decade for the DJF season, binned by sea-ice fraction.

fg = ds_out.t.isel(season=0).plot.contourf(
    levels=np.arange(210, 281, 5),
    cmap=cmocean.cm.thermal,
    col="valid_time",
    col_wrap=4,
    yscale="log",
    y="pressure_level",
    ylim=(1000, 100),
    add_colorbar=False,
)

for ax in fg.axs.flat:
    ax.set_xlabel("Sea-ice fraction", fontsize=12)
    ax.set_ylabel("Pressure (hPa)", fontsize=12)
    ax.yaxis.set_major_formatter(mticker.ScalarFormatter())
    ax.yaxis.set_minor_formatter(mticker.NullFormatter())
    ax.tick_params(labelsize=11)

season_name = str(ds_out.season.values[0])
fg.fig.suptitle(
    f"ERA5 Temperature Profiles by Decade — Season: {season_name}\nGrouped by Sea-Ice Fraction",
    y=1.03, fontsize=15, fontweight="bold",
)
mappable = fg.axs.flat[0].collections[0]
cbar_ax = fg.fig.add_axes([0.78, 0.95, 0.18, 0.04])   # [left, bottom, width, height]
cb = fg.fig.colorbar(mappable, cax=cbar_ax, orientation='horizontal')
cb.set_label(r"$\Delta\theta$ (K decade$^{-1}$)", fontsize=11)
cb.ax.tick_params(labelsize=10)
#cb.ax.set_xticks([-0.05, -0.025, 0.00, 0.025, 0.05])




fg.fig.set_size_inches(18, 5)
plt.tight_layout()
plt.show()

/tmp/ipykernel_15137/3686798213.py:35: UserWarning: This figure includes Axes that are not compatible with tight_layout, so results might be incorrect.
  plt.tight_layout()

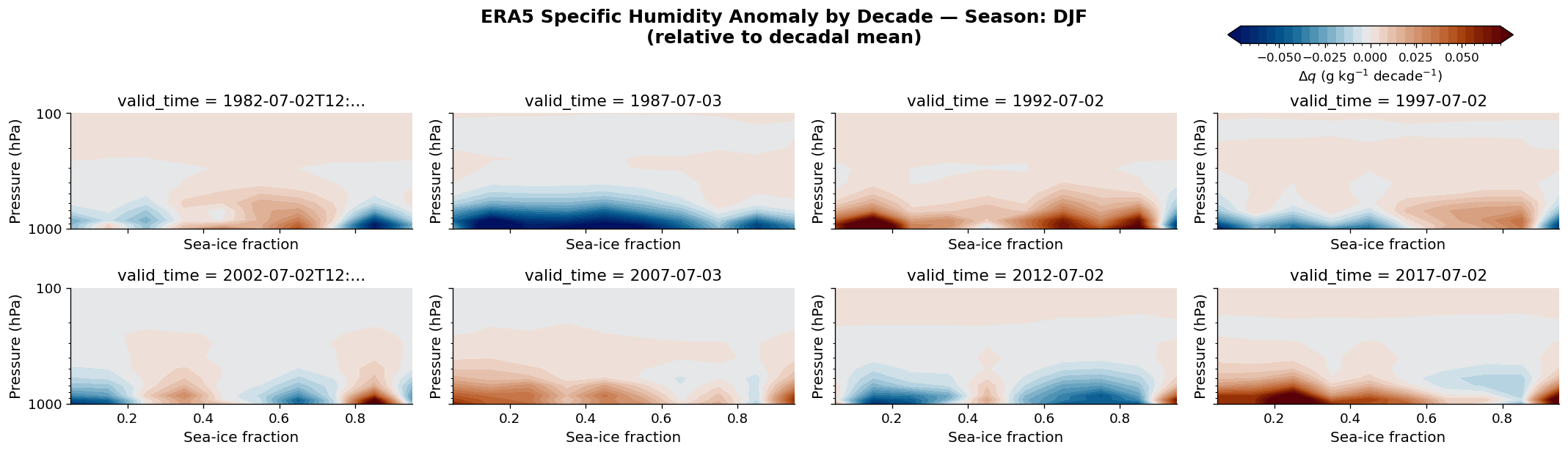

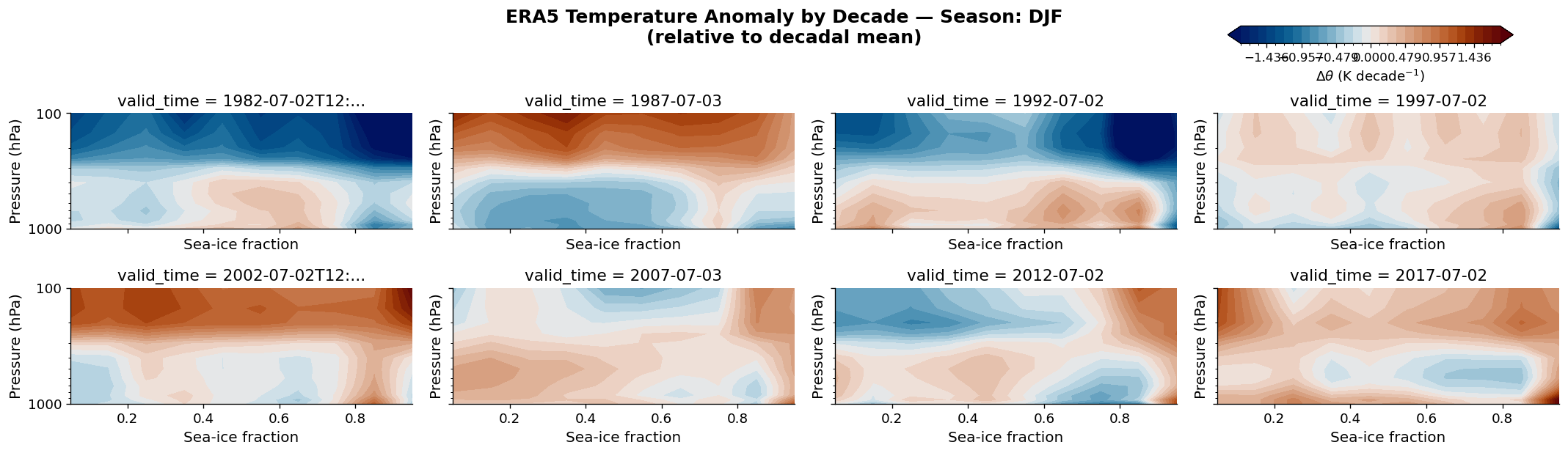

Decadal Snapshots: Temperature and Humidity Anomalies

The panels below show how the full atmospheric profile evolves decade by decade for a fixed season, grouped by sea-ice fraction. Plotting both the absolute temperature and the anomaly relative to the decadal mean side-by-side highlights the signal-to-noise ratio of the Arctic warming signal.

Because both variables are stored in a single xarray Dataset, switching between absolute values and anomalies is a one-line subtraction — the kind of operation that makes xarray indispensable for climate data analysis.

season_idx = 0  # DJF
season_name = str(ds_out.season.values[season_idx])

# ── Temperature anomaly ──────────────────────────────────────────────────────
max_t = float(np.abs(ds_trend.t.isel(season=season_idx)).quantile(0.98))
levels_t = np.linspace(-max_t, max_t, 31)

fg_t = ds_trend.t.isel(season=season_idx).plot.contourf(
    col="valid_time",
    col_wrap=4,
    yscale="log",
    y="pressure_level",
    ylim=(1000, 100),
    levels=levels_t,
    cmap=cmc.vik,
    add_colorbar=False
)

for ax in fg_t.axs.flat:
    ax.set_xlabel("Sea-ice fraction", fontsize=12)
    ax.set_ylabel("Pressure (hPa)", fontsize=12)
    ax.yaxis.set_major_formatter(mticker.ScalarFormatter())
    ax.yaxis.set_minor_formatter(mticker.NullFormatter())
    ax.tick_params(labelsize=11)

fg_t.fig.suptitle(
    f"ERA5 Temperature Anomaly by Decade — Season: {season_name}\n(relative to decadal mean)",
    y=1.03, fontsize=15, fontweight="bold",
)
mappable = fg_t.axs.flat[0].collections[0]
cbar_ax = fg_t.fig.add_axes([0.78, 0.95, 0.18, 0.04])   # [left, bottom, width, height]
cb = fg_t.fig.colorbar(mappable, cax=cbar_ax, orientation='horizontal')
cb.set_label(r"$\Delta\theta$ (K decade$^{-1}$)", fontsize=11)
cb.ax.tick_params(labelsize=10)
fg_t.fig.set_size_inches(18, 5)
plt.tight_layout()
plt.show()

# ── Specific humidity anomaly ────────────────────────────────────────────────
max_q = float(np.abs(ds_trend.q.isel(season=season_idx)).quantile(0.98)) * 1000  # g/kg

fg_q = (ds_trend.q.isel(season=season_idx) * 1000).plot.contourf(
    col="valid_time",
    col_wrap=4,
    yscale="log",
    y="pressure_level",
    ylim=(1000, 100),
    levels=np.linspace(-max_q, max_q, 31),
    cmap=cmc.vik,
    add_colorbar=False
)

for ax in fg_q.axs.flat:
    ax.set_xlabel("Sea-ice fraction", fontsize=12)
    ax.set_ylabel("Pressure (hPa)", fontsize=12)
    ax.yaxis.set_major_formatter(mticker.ScalarFormatter())
    ax.yaxis.set_minor_formatter(mticker.NullFormatter())
    ax.tick_params(labelsize=11)

fg_q.fig.suptitle(
    f"ERA5 Specific Humidity Anomaly by Decade — Season: {season_name}\n(relative to decadal mean)",
    y=1.03, fontsize=15, fontweight="bold",
)
mappable = fg_q.axs.flat[0].collections[0]
cbar_ax = fg_q.fig.add_axes([0.78, 0.95, 0.18, 0.04])   # [left, bottom, width, height]
cb = fg_q.fig.colorbar(mappable, cax=cbar_ax, orientation='horizontal')
cb.set_label(r"$\Delta q$ (g kg$^{-1}$ decade$^{-1}$)", fontsize=11)
cb.ax.tick_params(labelsize=10)
cb.ax.set_xticks([-0.05, -0.025, 0.00, 0.025, 0.05])
fg_q.fig.set_size_inches(18, 5)
plt.tight_layout()
plt.show()

/tmp/ipykernel_15137/4107186629.py:36: UserWarning: This figure includes Axes that are not compatible with tight_layout, so results might be incorrect.
  plt.tight_layout()

/tmp/ipykernel_15137/4107186629.py:71: UserWarning: This figure includes Axes that are not compatible with tight_layout, so results might be incorrect.
  plt.tight_layout()
