  1. The four layers: config defaults → dotted config overrides → params literals → per-point Var

  2. Pre-flight validation against your libRadtran install (typos, choices, ranges)

  3. Exploring every uvspec option from Python: describe() and search_options()

  4. Repeatable options, flag options, and the Raw escape hatch

  5. Running a batch: status codes and what happens to NaNs

  6. Post-processing: instrument channels and sensitivity kernels

Every simulation here is deliberately tiny (three points, 400–450 nm, two-stream solver), so the whole notebook runs in seconds.

import logging

import numpy as np
import pandas as pd
import xarray as xr

import pyradtran
from pyradtran import Var, Raw, load_config
from pyradtran.exceptions import ValidationError

logging.getLogger('pyradtran').setLevel(logging.WARNING)
pyradtran.__version__

'0.2.0'

Setup: a tiny scene#

The input dataset answers where and when; the config answers how. Three summer time steps over the Baltic Sea, with a per-point surface albedo — including one NaN to see how missing values are treated.

ds = xr.Dataset(
    coords={
        'time': pd.date_range('2023-06-01 09:00', periods=3, freq='3h'),
        'latitude': ('time', [61.0, 61.0, 61.0]),
        'longitude': ('time', [22.0, 22.0, 22.0]),
    },
    data_vars={
        'surface_albedo': ('time', [0.05, 0.60, np.nan]),
    },
)

cfg = load_config()   # package defaults + your ~/.pyradtran/config.yaml
cfg.simulation_defaults.source = 'solar'
cfg.simulation_defaults.rte_solver = 'twostr'
cfg.simulation_defaults.mol_abs_param = 'lowtran per_nm'
cfg.simulation_defaults.wavelength_nm = [400, 450]
cfg.simulation_defaults.output_columns = ['eglo', 'eup']
cfg.simulation_defaults.output_altitudes_km = [0.0]
cfg.simulation_defaults.albedo_value = 0.2   # the *config default* albedo
cfg.execution.max_workers = 1
ds

<xarray.Dataset> Size: 96B
Dimensions:         (time: 3)
Coordinates:
  * time            (time) datetime64[ns] 24B 2023-06-01T09:00:00 ... 2023-06...
    latitude        (time) float64 24B 61.0 61.0 61.0
    longitude       (time) float64 24B 22.0 22.0 22.0
Data variables:
    surface_albedo  (time) float64 24B 0.05 0.6 nan

Layer 1 — config defaults#

explain() renders the exact input file for one point without running anything. The comment on each line tells you which layer produced it — right now, everything comes from the config:

print(ds.pyradtran.explain(config=cfg))

rte_solver twostr                                                   # config
mol_abs_param lowtran per_nm                                        # config
data_files_path /opt/libRadtran-2.0.6/data                          # config
atmosphere_file /opt/libRadtran-2.0.6/data/atmmod/afglus.dat        # config
mol_modify O3 300.0 DU                                              # config
mol_modify H2O 2.0 MM                                               # config
source solar /opt/libRadtran-2.0.6/data/solar_flux/NewGuey2003.dat  # config
sza 42.11                                                           # config
day_of_year 152                                                     # config
wavelength 400 450                                                  # config
albedo 0.2                                                          # config
output_user lambda eglo eup                                         # config
zout 0.0000                                                         # config
umu 1.0                                                             # config
quiet                                                               # config

Note two lines you never wrote: output_user starts with lambda (injected so the spectral axis can be reconstructed from the output), and sza was computed from time and location.

Layer 2 — dotted config overrides#

A dotted key in params modifies the configuration, not the input file directly. Handy for sweeps over config-level settings:

print(ds.pyradtran.explain(
    config=cfg,
    params={'simulation_defaults.wavelength_nm': [500, 550]},
))

rte_solver twostr                                                   # config
mol_abs_param lowtran per_nm                                        # config
data_files_path /opt/libRadtran-2.0.6/data                          # config
atmosphere_file /opt/libRadtran-2.0.6/data/atmmod/afglus.dat        # config
mol_modify O3 300.0 DU                                              # config
mol_modify H2O 2.0 MM                                               # config
source solar /opt/libRadtran-2.0.6/data/solar_flux/NewGuey2003.dat  # config
sza 42.11                                                           # config
day_of_year 152                                                     # config
wavelength 500 550                                                  # config
albedo 0.2                                                          # config
output_user lambda eglo eup                                         # config
zout 0.0000                                                         # config
umu 1.0                                                             # config
quiet                                                               # config

Layer 3 — literals#

A plain uvspec option with a scalar value applies to every point. Watch the provenance change from config to params-literal — and note the config’s albedo 0.2 line is replaced, not duplicated:

print(ds.pyradtran.explain(
    config=cfg,
    params={'albedo': 0.55, 'mol_modify O3': 320.0},
))

rte_solver twostr                                                   # config
mol_abs_param lowtran per_nm                                        # config
data_files_path /opt/libRadtran-2.0.6/data                          # config
atmosphere_file /opt/libRadtran-2.0.6/data/atmmod/afglus.dat        # config
mol_modify H2O 2.0 MM                                               # config
source solar /opt/libRadtran-2.0.6/data/solar_flux/NewGuey2003.dat  # config
sza 42.11                                                           # config
day_of_year 152                                                     # config
wavelength 500 550                                                  # config
output_user lambda eglo eup                                         # config
zout 0.0000                                                         # config
umu 1.0                                                             # config
albedo 0.55                                                         # params-literal
mol_modify O3 320.0 DU                                              # params-literal
quiet                                                               # config

Layer 4 — per-point Var#

Var('surface_albedo') pulls the value from the dataset, per point. Point 0 has albedo 0.05, point 1 has 0.60:

for i in (0, 1):
    line = [l for l in ds.pyradtran.explain(
        point={'time': ds.time[i]},
        config=cfg,
        params={'albedo': Var('surface_albedo')},
    ).splitlines() if l.startswith('albedo')]
    print(f"point {i}: {line[0]}")

point 0: albedo 0.05                                                         # dataset-var
point 1: albedo 0.6                                                          # dataset-var

Point 2 has surface_albedo = NaN. A NaN parameter is simply omitted for that point — the config default applies again. (A NaN coordinate would skip the whole simulation instead; more on that below.)

line = [l for l in ds.pyradtran.explain(
    point={'time': ds.time[2]},
    config=cfg,
    params={'albedo': Var('surface_albedo')},
).splitlines() if l.startswith('albedo')]
print(f"point 2: {line[0]}")

point 2: albedo 0.2                                                          # config

Pre-flight validation#

libRadtran ships a machine-readable description of every option it accepts. pyRadtran extracts it from your local installation (cached in ~/.pyradtran/), so mistakes are caught before a single process spawns — with the option list of the exact binary you run:

for bad in (
    {'albdeo': 0.3},                 # typo
    {'ic_properties': 'granite'},    # not a valid parameterisation
    {'cloudcover wc': 1.5},          # out of range
    {'albedo': '0.5 0.6'},           # too many values
):
    try:
        ds.pyradtran.explain(config=cfg, params=bad)
    except ValidationError as e:
        print(f"{str(bad):40s} -> {e}\n")

{'albdeo': 0.3}                          -> Invalid parameter value(s): 'albdeo' is not a known uvspec option of the local libRadtran install; did you mean albedo / albedo_map? (wrap the value in Raw(...) to bypass validation)

{'ic_properties': 'granite'}             -> Invalid parameter value(s): 'ic_properties': 'granite' is not one of ['baum', 'baum_v36', 'echam4', 'fu', 'hey', 'key', 'raytracing', 'yang', 'yang2013']

{'cloudcover wc': 1.5}                   -> Invalid parameter value(s): 'cloudcover wc' value 1.5 outside [0.0, 1.0]

{'albedo': '0.5 0.6'}                    -> Invalid parameter value(s): 'albedo' got extra value(s) ['0.6']; expected 1 token(s)

The libRadtran manual, from Python#

No more PDF spelunking for signatures. describe() shows usage, valid choices, ranges, dependencies, and the full documentation text:

print(pyradtran.describe('wc_modify')[:1200])

wc_modify <gg|ssa|tau|tau550> <set|scale> <float>
group: Water and ice clouds   (repeatable)
requires: wc_file

Modify water cloud optical properties.

    wc_modify variable scale/set value

    `variable` can be one of the following parameter:


    ** gg **
    Modify the water cloud asymmetry factor for all wavelengths and altitudes.

    - set:
    `value` can be a float between -1.0 and 1.0.
    Please note that this option is only applied if a Henyey-Greenstein
    phase function is used but not if an explicit phase function is
    defined e.g. with `wc_file moments`. It doesn't make sense to modify only
    the first moment of an explicit phase function.
    This option is useful only for monochromatic
    calculations or in wavelength regions where the optical
    properties of water clouds can be considered constant,
    e.g. the ultraviolet range.
    - scale:
    Scale the water cloud asymmetry factor for all wavelengths and altitudes
    with `value` between 0.0 and 1.0.


    ** ssa **
    Modify the water cloud single scattering albedo for all wavelengths
    and altitudes.

    - set: `value` can be a float between 0.0 and 1.0.
    This optio

search_options() greps names, groups, and documentation:

print(pyradtran.search_options('optical thickness'))
print(pyradtran.search_options('brightness'))

['aerosol_angstrom', 'aerosol_file', 'aerosol_king_byrne', 'aerosol_set_tau_at_wvl', 'aerosol_visibility', 'ic_fu', 'ic_properties', 'mc_backward_heat', 'mc_core', 'mc_jacobian', 'mol_tau_file', 'no_absorption', 'rte_solver', 'wc_file', 'wc_modify']
['output_quantity']

Repeatable options, flags, and Raw#

Some options may appear on several lines (describe() marks them repeatable). Give them a list — one line per entry. Flag options take True. And if your (patched) uvspec knows an option the schema does not, wrap the value in Raw to bypass validation:

print(ds.pyradtran.explain(
    config=cfg,
    params={
        'crs_model': ['rayleigh Bodhaine', 'o3 Molina'],  # repeatable
        'aerosol_default': True,                          # flag
        'zout': [0.0, 1.0],                               # list on a normal option: one line
    },
))

rte_solver twostr                                                   # config
mol_abs_param lowtran per_nm                                        # config
data_files_path /opt/libRadtran-2.0.6/data                          # config
atmosphere_file /opt/libRadtran-2.0.6/data/atmmod/afglus.dat        # config
mol_modify O3 300.0 DU                                              # config
mol_modify H2O 2.0 MM                                               # config
source solar /opt/libRadtran-2.0.6/data/solar_flux/NewGuey2003.dat  # config
sza 42.11                                                           # config
day_of_year 152                                                     # config
wavelength 500 550                                                  # config
albedo 0.2                                                          # config
output_user zout lambda eglo eup                                    # config
umu 1.0                                                             # config
crs_model rayleigh Bodhaine                                         # params-literal
crs_model o3 Molina                                                 # params-literal
aerosol_default                                                     # params-literal
zout 0.0 1.0                                                        # params-literal
quiet                                                               # config

Run the batch: status and NaN handling#

Time to actually run. We add a fourth point with a NaN coordinate to demonstrate the difference: NaN parameter → option omitted; NaN coordinate → point skipped entirely, recorded as status=2.

ds4 = xr.Dataset(
    coords={
        'time': pd.date_range('2023-06-01 09:00', periods=4, freq='3h'),
        'latitude': ('time', [61.0, 61.0, 61.0, np.nan]),
        'longitude': ('time', [22.0, 22.0, 22.0, 22.0]),
    },
    data_vars={
        'surface_albedo': ('time', [0.05, 0.60, np.nan, 0.3]),
    },
)

result = ds4.pyradtran.run(
    config=cfg,
    params={'albedo': Var('surface_albedo')},
    save_to_file=False,
    show_progress=False,
)
result

2026-07-18 23:47:47,060 - pyradtran.interface - WARNING - 1/4 simulations failed; details in pyradtran_work/failures_20260718_234747.log

<xarray.Dataset> Size: 4kB
Dimensions:     (time: 4, wavelength: 51, altitude: 1)
Coordinates:
  * time        (time) datetime64[ns] 32B 2023-06-01T09:00:00 ... 2023-06-01T...
  * wavelength  (wavelength) float64 408B 500.0 501.0 502.0 ... 549.0 550.0
  * altitude    (altitude) int64 8B 0
Data variables:
    eglo        (wavelength, altitude, time) float64 2kB 1.263e+03 ... nan
    eup         (wavelength, altitude, time) float64 2kB 72.91 945.4 ... nan
    status      (time) int64 32B 0 0 0 2
Attributes:
    generated_by:       pyradtran
    pyradtran_version:  unified_system
    generation_date:    2026-07-18T23:47:47.064710
print("status per point:", result.status.values, "  (0 ok, 1 failed, 2 skipped)")
result.eglo.isel(altitude=0).plot.line(x='wavelength', hue='time');

status per point: [0 0 0 2]   (0 ok, 1 failed, 2 skipped)

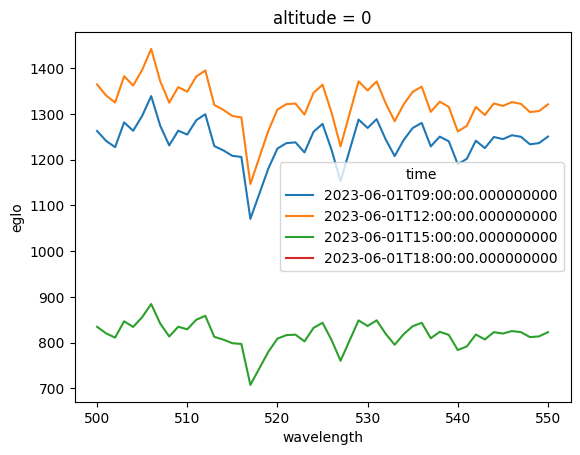

../_images/7ae84de01bfd3a40113293b93ab26b1958a4ad3de2627d5840d861d19e9ef46c.png

The dark curve is the low-albedo morning point; the skipped point is all-NaN. Had any point failed, its stderr would be collected in a failures_<timestamp>.log in the working directory and its .inp file kept for post-mortem.

Instrument channels#

Convolve the spectral result with spectral response functions — here two boxcar channels — directly in run(channels=...) or as post-processing:

from pyradtran import convolve_channels

wl = np.linspace(400.0, 450.0, 51)
phi = np.zeros((2, wl.size))
phi[0, (wl >= 405) & (wl <= 420)] = 1.0
phi[1, (wl >= 430) & (wl <= 445)] = 1.0
srf = xr.DataArray(
    phi, dims=('channel', 'wavelength'),
    coords={'channel': ['ch1', 'ch2'], 'wavelength': wl},
)

channels = convolve_channels(result.drop_vars('status'), srf)
channels.eglo.isel(altitude=0).to_pandas().round(1)
channel ch1 ch2
time
2023-06-01 09:00:00 NaN NaN
2023-06-01 12:00:00 NaN NaN
2023-06-01 15:00:00 NaN NaN
2023-06-01 18:00:00 NaN NaN

(For thermal work, pyradtran.brightness_temperature() inverts the Planck function to convert channel radiances to brightness temperatures.)

Sensitivity kernels#

jacobian() runs the batch twice — base and perturbed — and returns the finite-difference kernel. Here: how much does surface irradiance react to albedo?

jac = ds.pyradtran.jacobian(
    'albedo', 0.05,
    config=cfg,
    show_progress=False,
)
jac.eup.isel(altitude=0).plot.line(x='wavelength', hue='time')
print(f"d(eup)/d(albedo) at 425 nm: "
      f"{float(jac.eup.sel(wavelength=425, method='nearest').mean()):.1f} "
      f"mW m-2 nm-1 per unit albedo")

d(eup)/d(albedo) at 425 nm: 1357.8 mW m-2 nm-1 per unit albedo

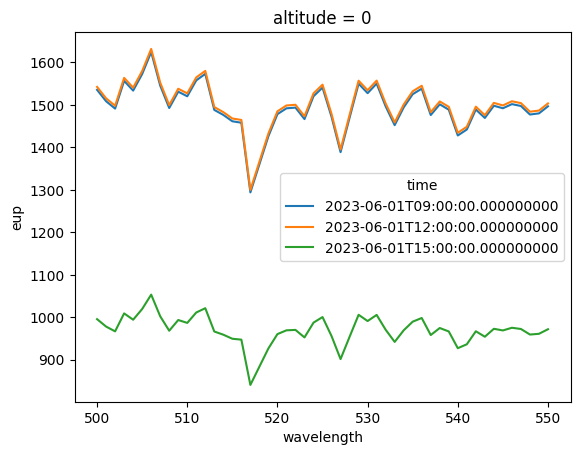

../_images/a1b0a0b79e45968a87645721731fb2865bce88ebe182b175492ada7dea6ffaa0.png

Where next#

Contents
